Surveillance
MicroX
A compact quadcopter for confined-space training, indoor rescue operations and site awareness.
- Flight time
- 25+ min
- Max take-off weight
- <2.8 kg
- Communication range
- 2 km
ThermaX V5
Two ways to see. A compact quadcopter combines optical detail with thermal awareness for inspection, search and observation after dark.
Discuss this platform
PLATFORM DATA
Know the capability.
AIRCRAFT SPECIFICATIONS
- Model
- KTX-V5
- Flight-time capacity
- 55+ minutes
- Maximum take-off weight
- 4.5 kg
- Aircraft communication range
- 15 km
- Operating temperature
- −10°C to +55°C
- Wind resistance
- 15–18 km/h
- Wind gust tolerance
- 35–40 km/h
- Mission payload
- 300 g

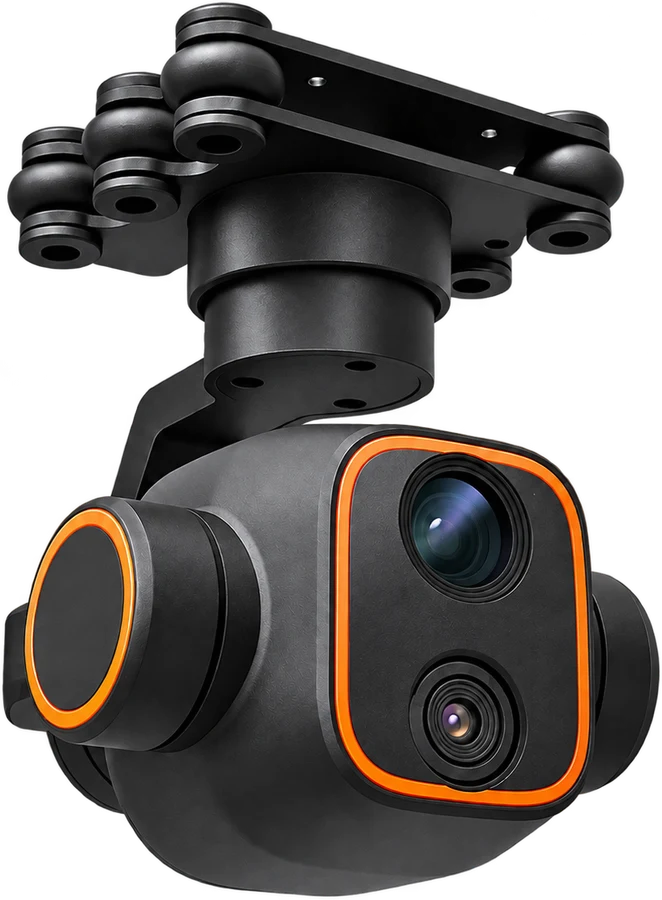

DUAL-SENSOR CAMERA
- Visible camera
- 2,560 × 1,440
- Video recording
- 4K
- Thermal imaging
- 384 × 288 · 7 mm lens
- Stabilisation
- 3-axis gimbal
- Live video
- 1280 × 720 RTSP
Mission profiles
Thermal inspectionSearch and rescueDay and night observationEXPLORE THE SERIES
Surveillance

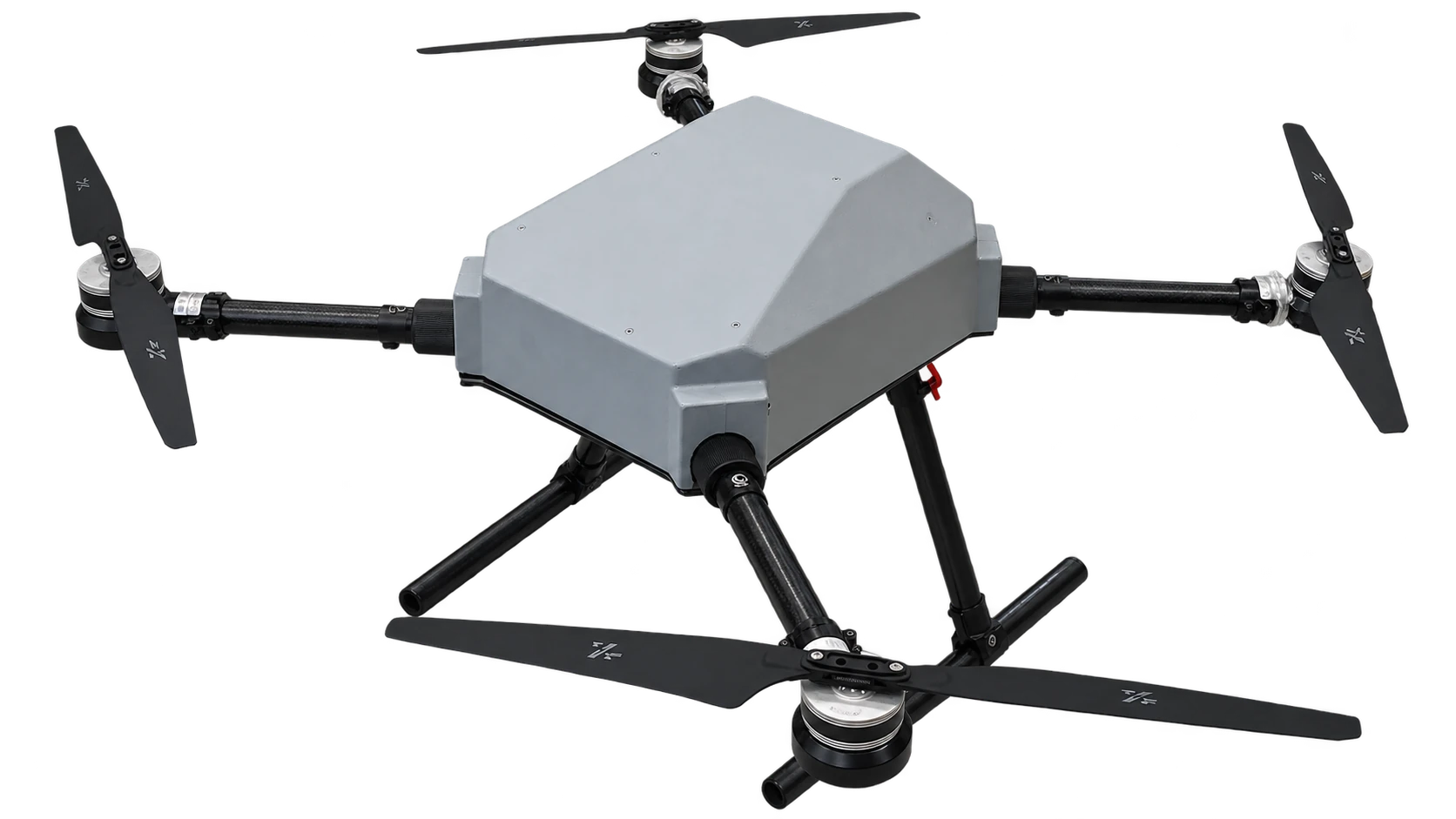

Quad-X100
A long-endurance quadcopter for site inspection, survey and mapping, and rescue operations.
- Flight time
- 1 hour
- Max take-off weight
- 5 kg
- Communication range
- 15 km
